Art-Net 9 universe DMX, sACN ethernet - SPI+DMX512, 4608 CH (TM1814, SM16704, WS2811, 2812B)

Art-Net 9 universe DMX, sACN ethernet - SPI+DMX512, 4608 CH (TM1814, SM16704, WS2811, 2812B)
Code:LED632
Category:Controllers digital
Producer:SOH Sound & Lights s.r.o.
Weight:300 g
Stores inventory:9 at stock
Price without VAT:1.743,- Kč
Price with VAT:2.110,- Kč

2.110,- Kč with VAT

Item description:

DMX512 ART-NET controller - 9 universe ports for up to 4608 DMX512 channels, 5 V - 24 V power supply.

Up to 9520 pixels in repeat mode, 1365 RGB or 1024 RGBW LEDs in
repeat mode. Support all chips with single wire interface.

Configuration and firmware update via web server.
ART-NET, sACN(E1.31) 8 univers to LED stripe output converter a
ART-NET, sACN(E1.31) 1 universe to DMX512 HTP/LTP merging,
input/output converter. Both ports work simultaneously and independently.

DMX channels: Input for LED port - 4096,
Output/input for DMX512 - 512 port

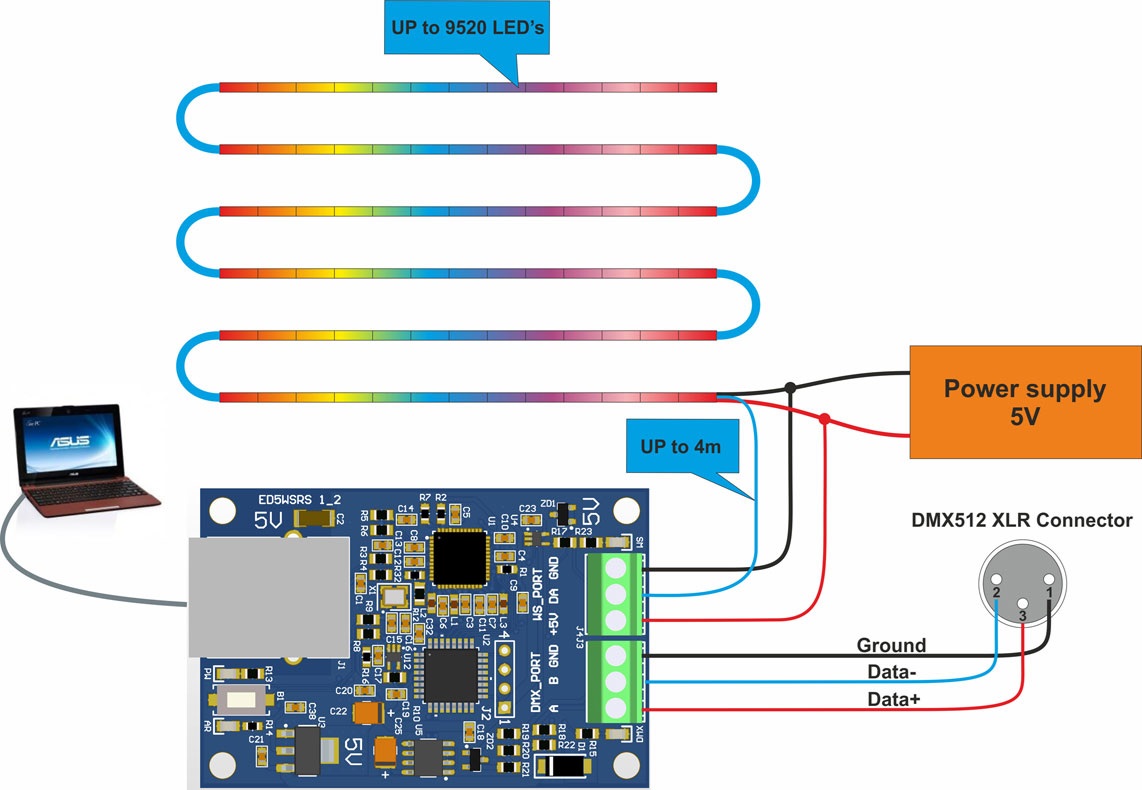

CONNECTION DIAGRAM:

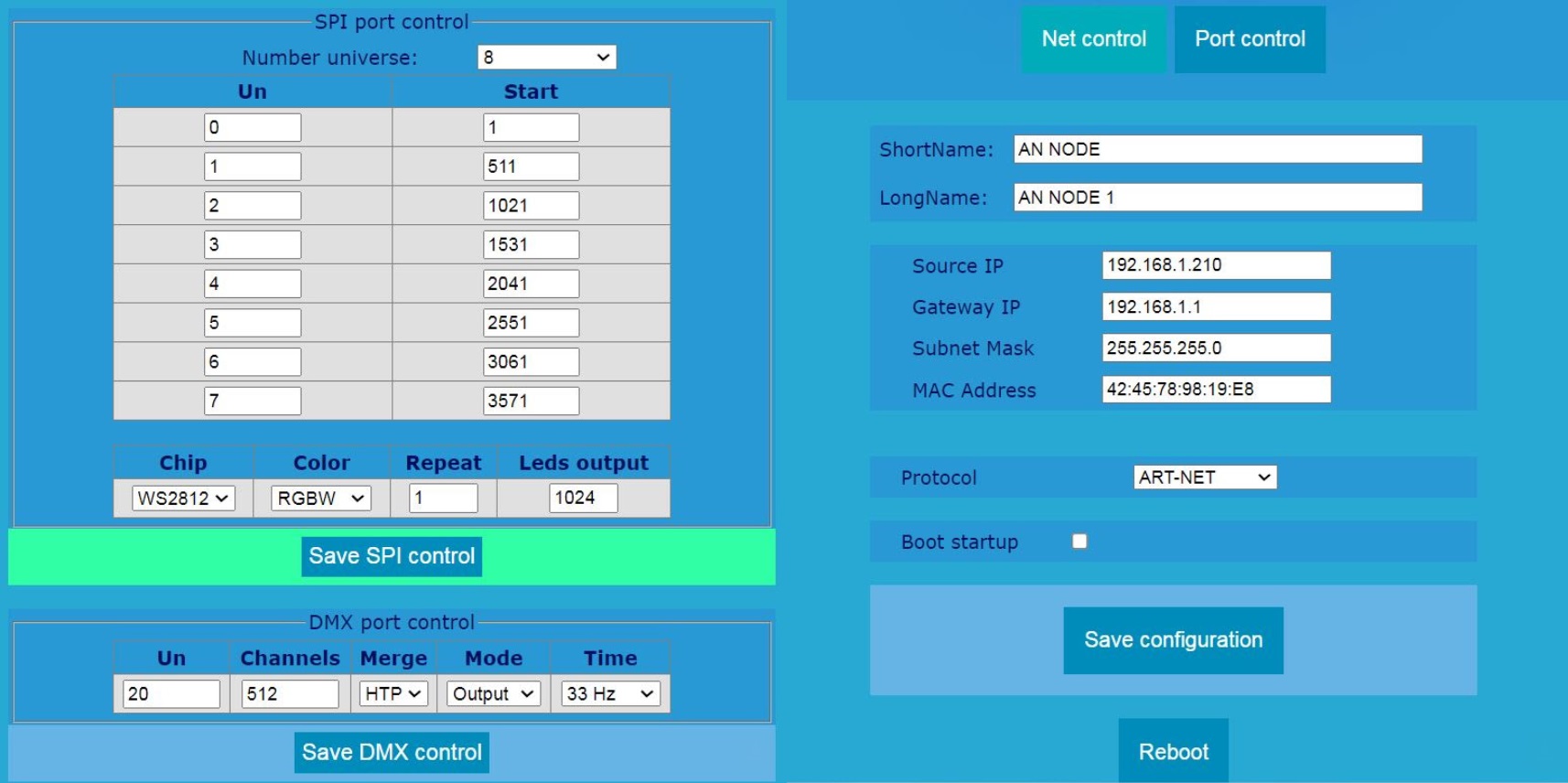

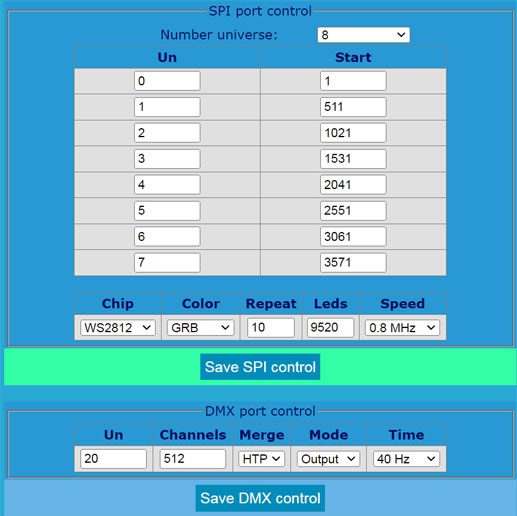

WEB SERVER:

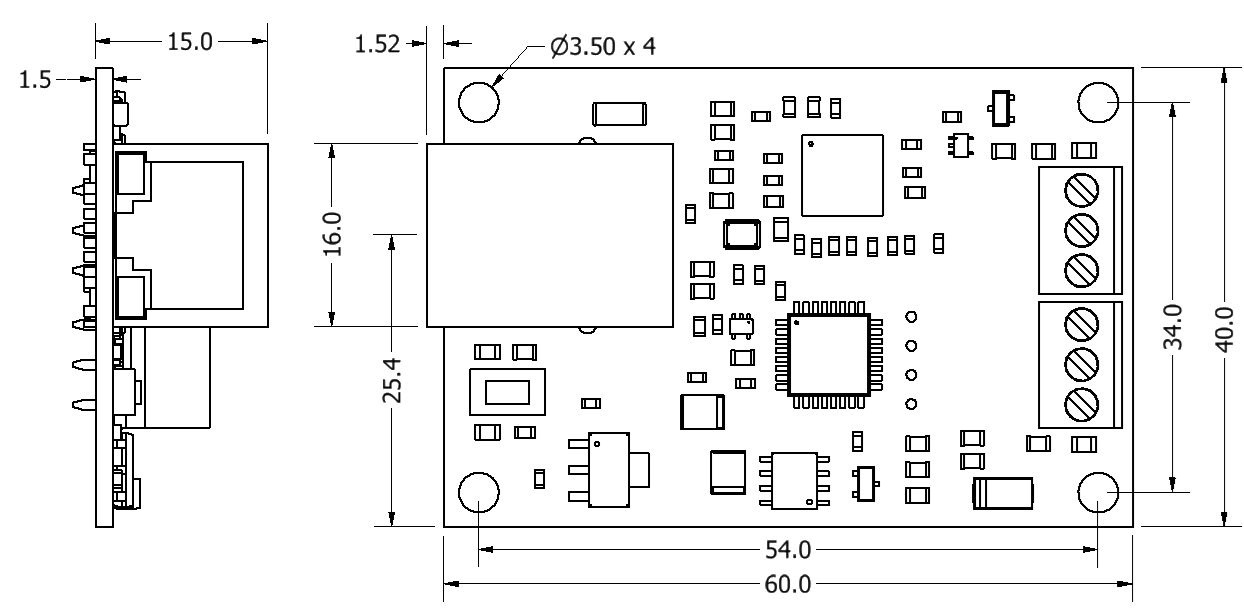

DIMENSIONS:



MANUAL


Technical specifications

Number of DMX512 universes:   9
Number of controlled DMX512 channels:
   4096 + 512
Controlled pixels:
   1365 RGB or 1024 RGBW LEDs
up to 9520 pixels in repeat mode
Output frequency:
   40, 33, 25, 10, 1 Hz
Power supply:
   5 V - 24 V
Screw terminal block:
   yes (6 ports)
Dimensions:
   61,52 x 40,00 x 15,00 mm (L x W x H)
