Music controller SP548E for digital RGB LED stripes WS2811,2812, Wi-Fi, Alexa, Google Assistant 5-12-24 V

Code:	LED720
Category:	Controllers digital
Producer:
Weight:	500 g
Stores inventory:	at stock
Price without VAT:	304,- Kč
Price with VAT:	368,- Kč

368,- Kč with VAT

Item description:

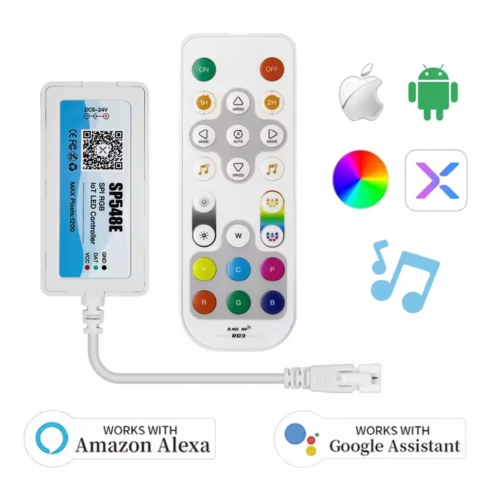

NEW 2025 - smart music Wi-Fi / Bluetooth controller for digital
RGB LED stripes 5-24 V, including a remote control with 22 buttons
and three buttons for quick selection. For controlling up to 1200 pixels.
Supports voice assistants Google Assistant or Amazon Alexa.

LED stripes can be controlled either by phone with the BanlanX application, or you can use an IR remote control, which has functions such as turning the stripe on and off, timer, music and automatic presets, brightness and speed control
of the effect, or six preset static colors.
8 dynamic LED effects, 8 single-color scenes and 8 music effects can be called up directly by voice commands.
Built-in 8 music effects and 180 non-musical dynamic effects.

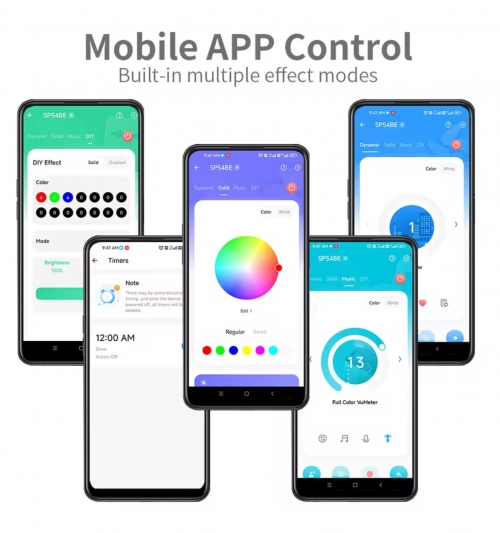

The BanlanX application is free to download in GooglePlay or iOS Store. The controller can be connected both via Wi-Fi and Bluetooth.

Controller supports almost all commonly available LED chips, such as WS2811, WS2812B, US1903, WS2801, etc.

MANUAL

Technical specifications

Model ovladače: SP548E
Input voltage: DC 5-12-24 V
Controllable pixels: up to 1200 pixels
Connection type: Wi-Fi or Bluetooth
App: BanlanX (free), for Android and iOS
Voice assistant: support Google Assistant, Amazon Alexa
Output signal: digital SPI (TTL) signal
Recommended operating temperature: -20℃ - +60℃
Maximum current: 6 A

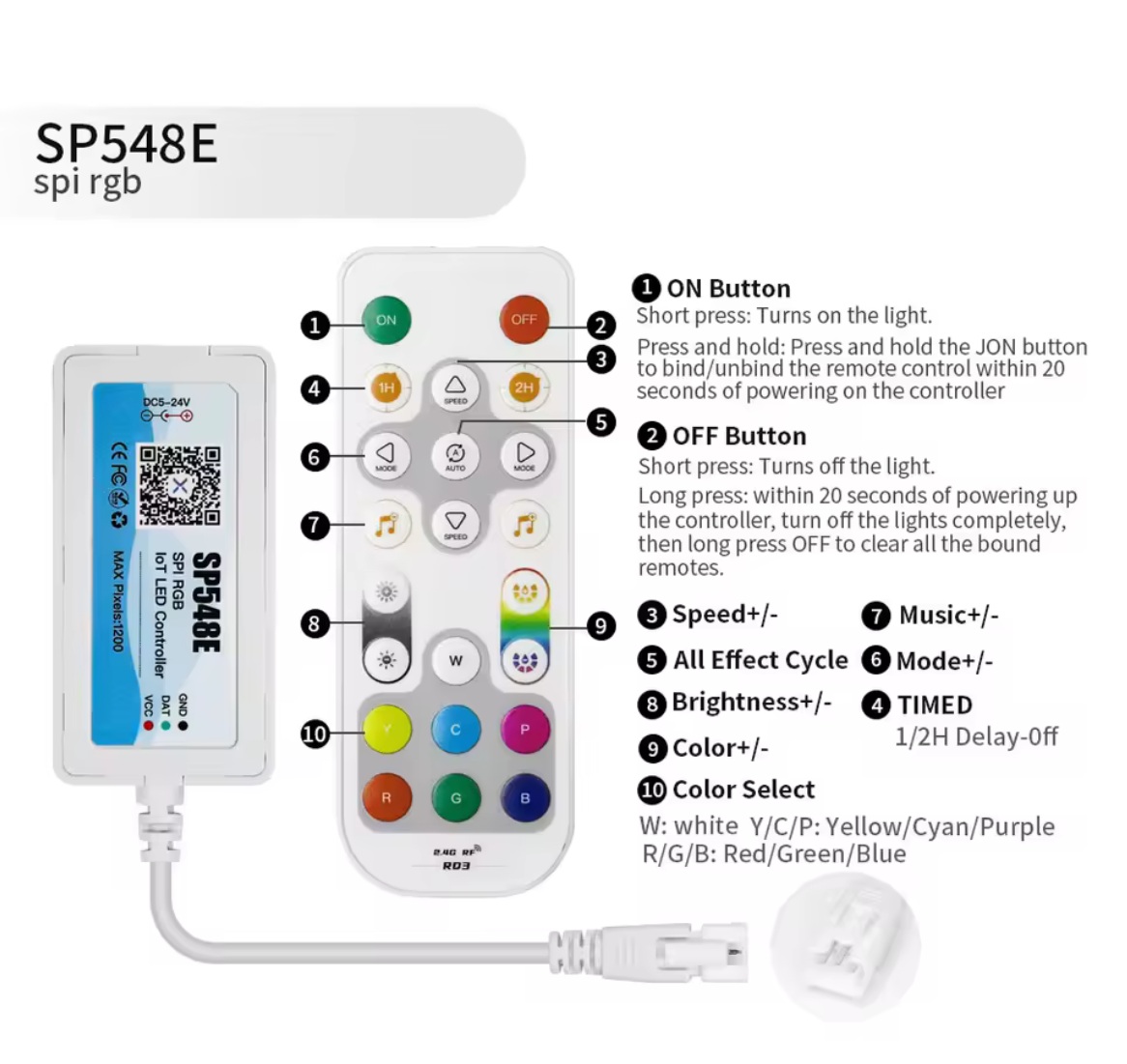

Remote control: 22 buttons, IR connection
Supported LED chips: WS2811, WS2812, WS2815, SK series IC SPI
RGB LED stripes
Weight: 60 g
Package content: 1x SP548E controller, 1x remote control (battery
CR2025/2032 included in the package), user´s manual
