NovaStar TB1-4G LED screen controller

Code:	LED726
Category:	LED control
Producer:	NovaStar
Weight:	2000 g
Stores inventory:	2 at stock
Price without VAT:	3.958,- Kč
Price with VAT:	4.790,- Kč

4.790,- Kč with VAT

Item description:

NEW 2025 - compact multimedia controller for LED screens
Novastar Taurus TB1-4G.

The controller simplifies the management of LED displays thanks to integrated playback and sending functions. It supports a 3,5 mm stereo audio interface,
a USB 2.0 port, a SIM card slot (usable with an installed 4G module)
and two connectors for Wi-Fi and 4G (optional) antenna, which ensures easy integration into various signage sets.

With a powerful 1.2GHz quad-core processor, 32GB internal memory, 1GB RAM, support for smooth 1080p hardware video decoding, and an Ethernet LED out port that provides a maximum readout capacity of 650,000 pixels, this controller is ideal for most commercial LED displays and applications that require stable and reliable performance, such as fixed or mobile displays, advertising players, retail store displays, door displays, vehicle-mounted displays, and more.

It offers expandable storage capacity via USB 2.0 port (up to 4GB) for additional storage solutions and allows playback of files imported from a USB disk, meeting a wide range of playback requirements. In addition, the cloud storage integration option offers greater flexibility for content management. The controller is designed for flexible network deployment in remote locations. It offers both wired and wireless network configurations thanks to its RJ45 Ethernet port, Wi-Fi AP and Wi-Fi STA mode, and optional 4G cellular connectivity. It operates with optimal performance in harsh environmental conditions from -20°C to +60°C when powered by a 230 V AC to 12 V adapter with a maximum power consumption of 18 W.

The controller also offers comprehensive control plans for convenient player management via remote computers, smartphones, and tablets from anywhere, anytime. With the NovaStar cluster solution, multi-screen management and monitoring is supported in a centralized manner.

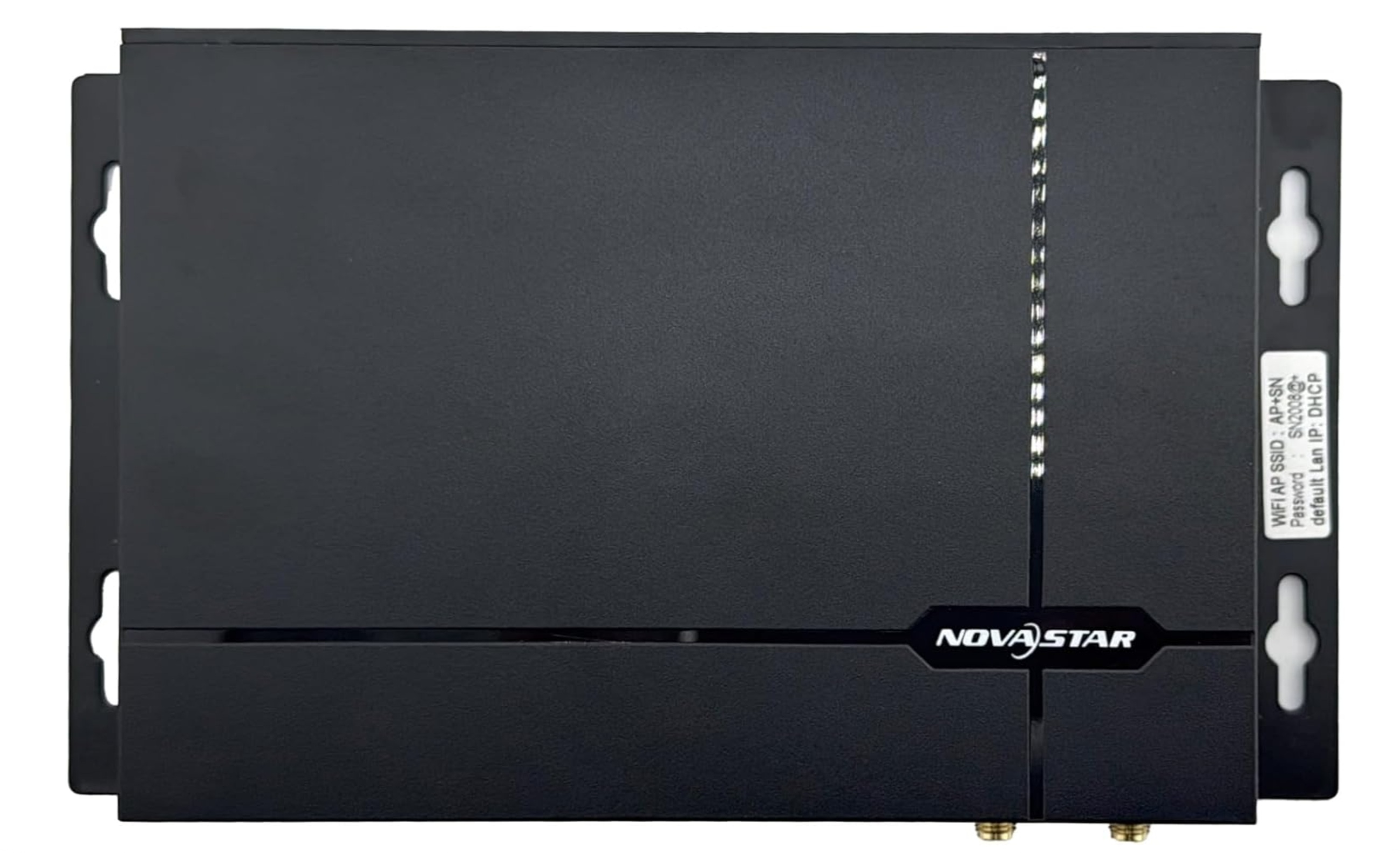

Four holes on the sides allow the controller to be mounted on a wall.

MANUAL

Technical specifications

Loading capacity: up to 650,000 pixels (max. width 1920 pixels or
max. height 1080 pixels)
Outputs: 1x Gigabit Ethernet LED output port, 1x Stereo audio jack
Input: 1x USB 2.0 Type A port (imported solutions for content playback
and storage expansion)
Ethernet port: 1x for PC control, LAN or network connection)
USB port: 1x USB 2.0 Type B port (PC control for content publishing
or screen control)
Performance: Quad-core processor @ 1.2 GHz
Hardware: H.265/4K/HD/FHD video decoding
Memory: 1 GB RAM, 2 GB internal memory (28 GB available for content)
Image support: JPEG/JPG/BMP/GIF/PNG/WEBP
Video support: DAT/MPG/VOB/TS/AVI/ MKV/MP4/MOV/3GP/FLV/WEBM
Audio support: MP1/MP2/MP3/WMA/WAV/OGG/OGA/FLAC/AAC/M4A/
3GP/XMF/MXMF/RTTTL/RTX/OTA/IMY
Mode switching: Wi-Fi AP and Wi-Fi STA
Synchronous playback on multiple screens: yes
Connection: wired and wireless
Support for optional 4G modules: yes
Wall mounting: yes, 4 holes
Dimensions: 197 x 116 x 34 mm
Weight: 304 g
Package contents: TB1-4G controller, receiving antenna, power adapter
12 V / 1,5 A (18 W), user´s manual
