Moving LED head, 150 W, spot, prism, LED ribbon, DMX

Code:	LED644
Category:	Moving heads
Producer:	SOH Sound & Lights s.r.o.
Weight:	8000 g
Manual:
Stores inventory:	min. 1 month
Price without VAT:	4.306,- Kč
Price with VAT:	5.210,- Kč

5.210,- Kč with VAT

Item description:

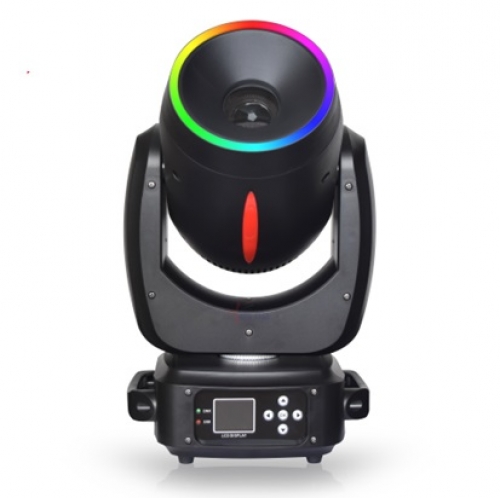

Compact moving LED head with 150 W power. Spot, rotating prism, ribbon pixel ring with RGB LEDs to enhance the effect.

This light has adaptive active cooling control. When the LEDs are off,
cooling is deactivated and unnecessary dust contamination and noise
generated by the fans are avoided.

15 colors + 1 half-color effect, 1 x rotating 5-sided prism.
Rotation horizontal 540°, vertical 245°.

1 plate with a fixed pattern: 10 + 1 pattern, 1 rotating pattern:
7 + 1, shake function, stroboscope 0.5-14x/s,
pulse and random stroboscope functions.

Auto mode, Sound Active mode, Master/Slave connection.
DMX512 control (14 modes).

Setting values and modes on the LCD display with buttons. The head
can be hung using the supplied bracket on a structure or truss.

MANUAL

Technical specifications

Light source:   150 W LED diode
LED stripe:   RGB
Modes:   Auto, Sound Active, DMX
DMX modes:   14 channels
DMX connection:   3-pin IN/OUT
Ballast:   electronic ballast
Control:   LCD display
Pattern:   1 plate with fixed pattern: 10 + 1 pattern,
1 rotation pattern:   7 + 1, shake function
Colors:   15 + 1 half-color effect
Prism:   1x rotating 5-sided prism
Atomization:   linear atomization, pulse atomization
Rotation:   horizontal 540°, vertical 245°
Dimming:   mechanical
Strobe:   0,5-14x/s, pulse and random strobe functions
Power supply:   230 V AC, 50-60 Hz, PowerCon
Hanging console:   1x (included)
Dimensions (W × D × H):   230 × 180 × 400 mm
Weight:   5800 g

This product can be directly controlled by music via the USB connection!

DMX Pipe & Music Vizualization

Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.

For more information click here.
