Moving LED head 100 W RGBW, Beam, 24x 0.2 W RGB LED strip, DMX

Code:	LED645
Category:	Moving heads
Producer:	SOH Sound & Lights s.r.o.
Weight:	5000 g
Stores inventory:	min. 1 month
Price without VAT:	2.388,- Kč
Price with VAT:	2.890,- Kč

2.890,- Kč with VAT

Item description:

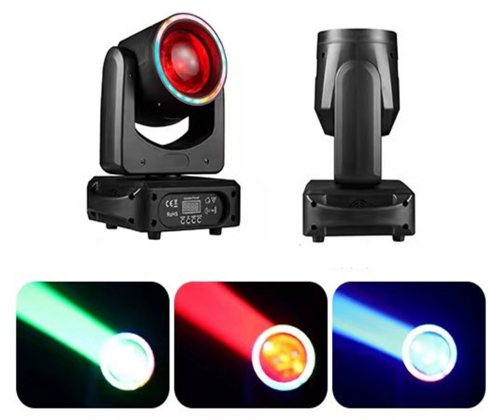

Compact, light Beam LED head equipped with a
100 W RGBW LED diode and an RGB LED stripe at the front
of the head. Suitable for clubs and medium-sized areas.

This light has adaptive active cooling control. When the LEDs are off,
cooling is deactivated and unnecessary dust contamination and noise
generated by the fans are avoided.

Swift head rotation movement, adjustable speed, 540° (horizontal) and 180° (vertical) rotation. The fan turns on with an LED. The head can be controlled in fully Auto mode, let it react to music, or use the 15-channel DMX512 mode. Separate DMX channel for controlling the effect on the circle
with RGB LED stripe !

Setting values and modes on the LCD display. The head can be hung from a structure or truss using the supplied bracket. Connection of additional
lights via 3-pin XLR IN/OUT connectors.

DMX CHANNEL LIST

Technical specifications

Power:   100 W
Light source:   100 W RGBW 4in1 LED
LED stripe:   24x 0,2 W RGB, SMD5050
Cooling:   active, air. Intelligent temperature control protection
Modes:   Auto, Sound active, Master/Slave, DMX512
DMX channels:   15 channels
DMX connection:   3-pin XLR IN/OUT
Strobe:   0-20x/sec.
Horizontal rotation:   540°
Vertical rotation:   180°
Scan fine tuning:   8/16 bits
Position sensing:   electronic automatic positioning
Control:   LCD display with 4 buttons
Power supply:   230 V AC, 50-60 Hz

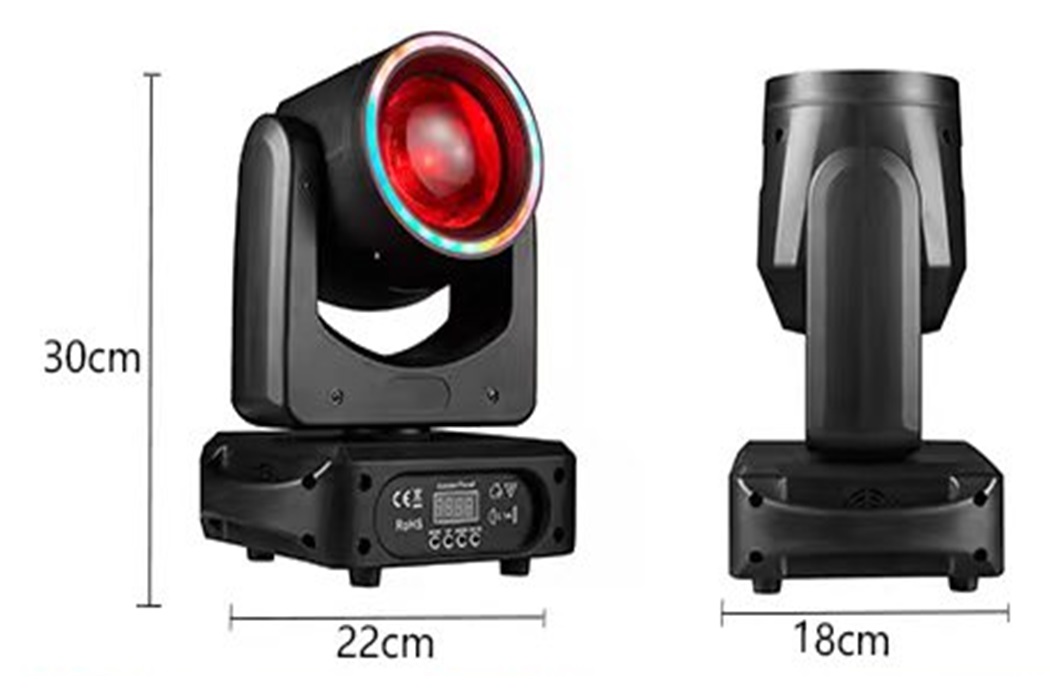

Dimensions:   300 x 220 x 180 mm
Weight:   3200 g

This product can be directly controlled by music via the USB connection!

DMX Pipe & Music Vizualization

Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.

For more information click here.
