LED Wall Bar reflector 48+24 segments, 240x white 0,5 W + 480x 0,3 W RGB LED diode, DMX
|
|
||||||||||||||
|
2.557,- Kč with VAT |
|||||||||||||||
Item description:

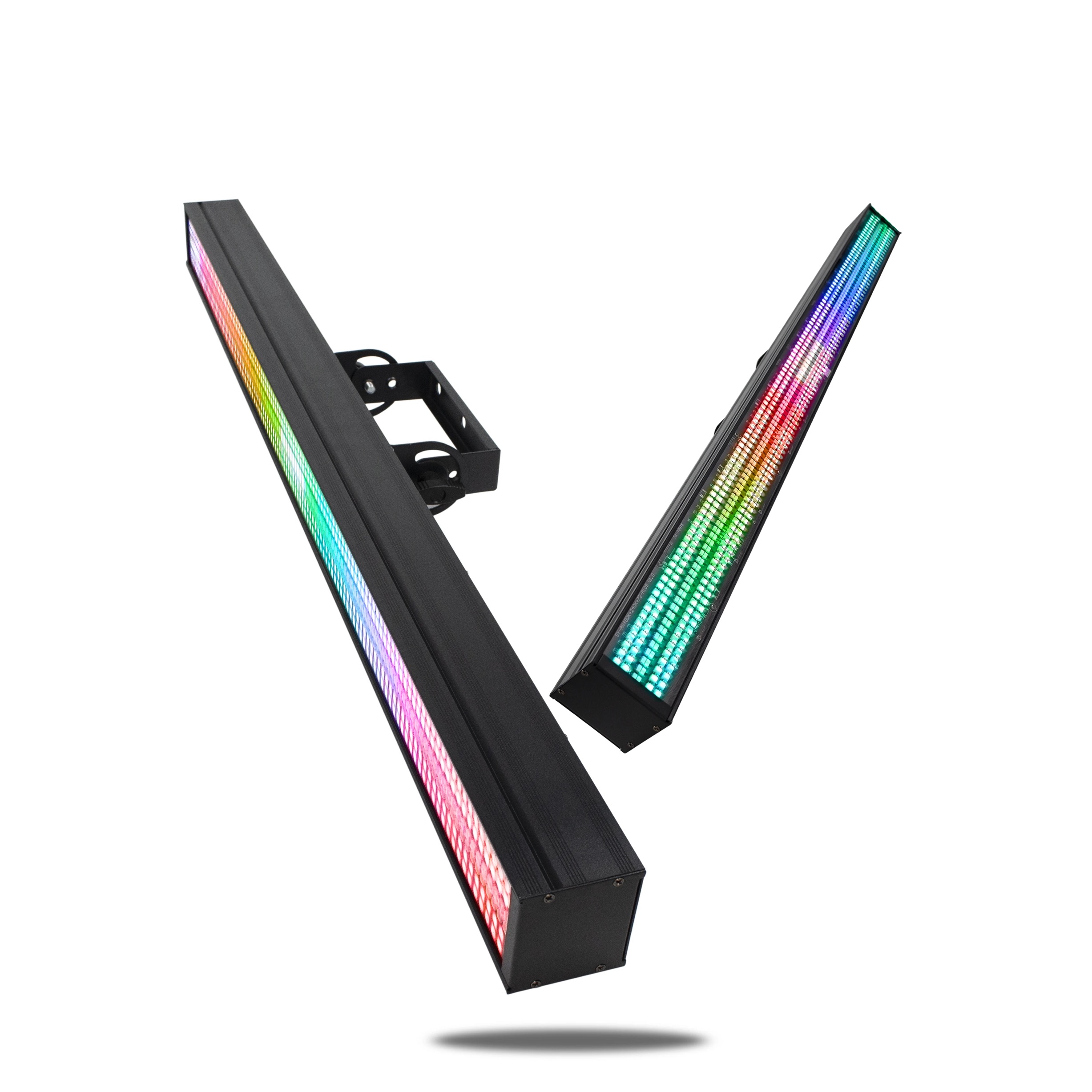

One-meter LED WALL BAR reflector, allows
independent control of 48 + 24 LED segments !
240x 0.5 W white SMD LED diode 5730 and
480x 0,3 W RGB LED SMD diode 5050. Power 150 W.
PASSIVE COOLING FAN - ABSOLUTE SILENT !
Choice between 4 / 16 and 168 DMX channel modes. 168 channel
mode for independent control of all diode segments !
Auto mode, Master/Slave, DMX.
Linear 16-bit dimming 0-100%, horse, flash and running effects.
Flash frequency 1-30 Hz.
Setting modes and values on the LCD display on the rear panel of
the reflector, through connectors PowerCon IN/OUT and 3-pin
XLR/DMX IN/OUT for connecting other lights in series.
Active air cooling, the LED Wall Bar can either be placed on the
floor or suspended from a structure or truss using a console.
Technical specifications
LEDs: 240x 0,5 W white SMD 5730 + 480x 0,3 W RGB SMD 5050
Diode segments: 48 + 24
Power: 150 W
Flash frequency: 1-30 Hz
Dimming: linear 16-bit, 0-100%
Modes: Auto, Master/Slave, DMX
DMX channels: 4 / 16 / 168
Degree of protection: IP20
Operating temperature: -30°C to +50°C
DMX connection: 3-pin XLR IN/OUT connectors
Control: LCD display
Power supply: 230 V AC 50/60 Hz, PowerCon IN/OUT
Cooling: passive, silent
Dimensions: 970 x 120 x 70 mm (L x D x H)
Weight: 2700 g
This product can be directly controlled by music via the USB connection!
Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.
For more information click here.
