GOBO + ACID effect laser, 8x RGB laser diode, DMX, 700 mW, remote control

	Code: LASER326 Category: Effect Lasers Producer: Weight: 2500 g Stores inventory: at stock Price without VAT: 1.528,- Kč Price with VAT: 1.849,- Kč
pcs. 1.849,- Kč with VAT

Item description:

NEW - effect beam RGB Gobo laser with 8 laser diodes in the
version with laser diodes 4x ACID effect (nebula) + 4x GOBO effect !

Total power 700 mW, DMX512 control, remote control.

Four diodes with acid fog effect (2x red, 1x blue, 1x green)
and four diodes with Gobo effects (2x red, 2x green).

The specialty of this laser is the arrangement of diodes at an angle and around the entire circumference. Thanks to this, this laser can cover a wide area, which is not possible with a laser with only direct output. Each of the 8 laser diodes can be set separately via the menu in the laser, via the remote control or remotely via DMX. The rotation speed of all built-in motors can also be regulated.


Diode combination:
4x red 100 mW (2x acid, 2x gobo)
3x green 50 mW (1x acid, 2x gobo)
1x blue 150 mW (1x acid)
TOTAL POWER: 700 mW


Thanks to the diode layout, the laser has a wide viewing angle of 360°.
Using DMX, you can control individual diodes and the speed of the motor in 11 channel mode. The laser can also be operated in automatic mode or have it react to the music played using the built-in microphone. Music flash, strobe, auto flash.
The remote control can turn the laser on or off, switch between music and auto modes, control the speed of the motor and strobe, and use preset modes.

With the remote control, you can turn the laser on or off, change colors, switch between music and auto mode, regulate the speed of the motor and strobe and use preset modes.

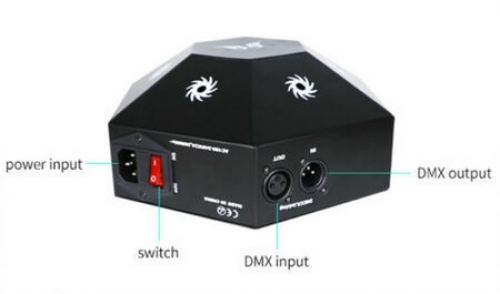

With using the 3-pin XLR/DMX IN/OUT connectors, you can connect other DMX lights in series. The laser is equipped with active air cooling, so it can be placed on the floor or hung on a structure or truss using a console.

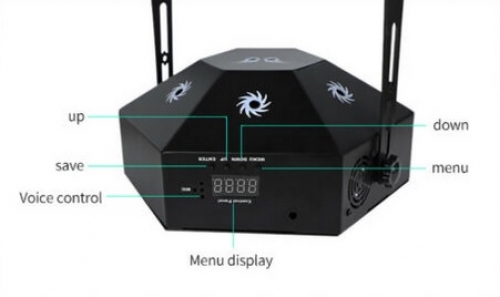

The laser is ideal for smaller and medium-sized spaces. Control and setting of values ​​and modes via LCD display with 4 buttons on the side panel of the laser.

MANUAL

Technical specifications

Number of diodes:   8
Diode red:   4x 100 mW
Diode green:   3x 50 mW
Diode blue:   1x 150 mW
Total power:   700 mW
Gobos:   4 diodes
Acid (Fog) effect:   4 diodes
Viewing angle:   360°
Modes:   Auto, Sound Active, DMX
DMX512:   11 channels
Cooling:   active air-fan
Display:   LCD with 4 buttons
Power supply:   230 V AC
DMX connection:   3-pin XLR IN / OUT connectors
Remote control:   yes
Dimensions:   230 x 200 x 100 mm
Weight:   1500 g
Package contents:   1x 8 eyes RGB laser, 1x remote control, 1x remote control
incl. battery CR2032, 1x power EURO cable, 1x console, 1x manual

This product can be directly controlled by music via the USB connection!
