LED screen P2 indoor, 640x640 mm, wall mounting

Code:	LED663
Category:	LED indoor
Producer:
Weight:	14000 g
Stores inventory:	min. 1 month
Price without VAT:	12.575,- Kč
Price with VAT:	15.216,- Kč

15.216,- Kč with VAT

Item description:

NEW - LED panel, P2 screen, for indoor use. Wall mounting, suitable for permanent installation. Recommended viewing distance ≥2 m. The panel includes its own receiving card and power supply.
Module dimension 320 x 160 mm.

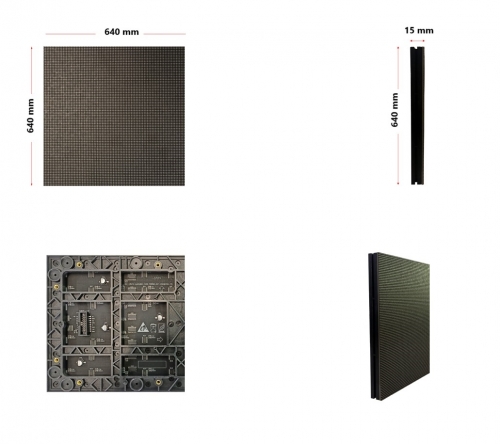

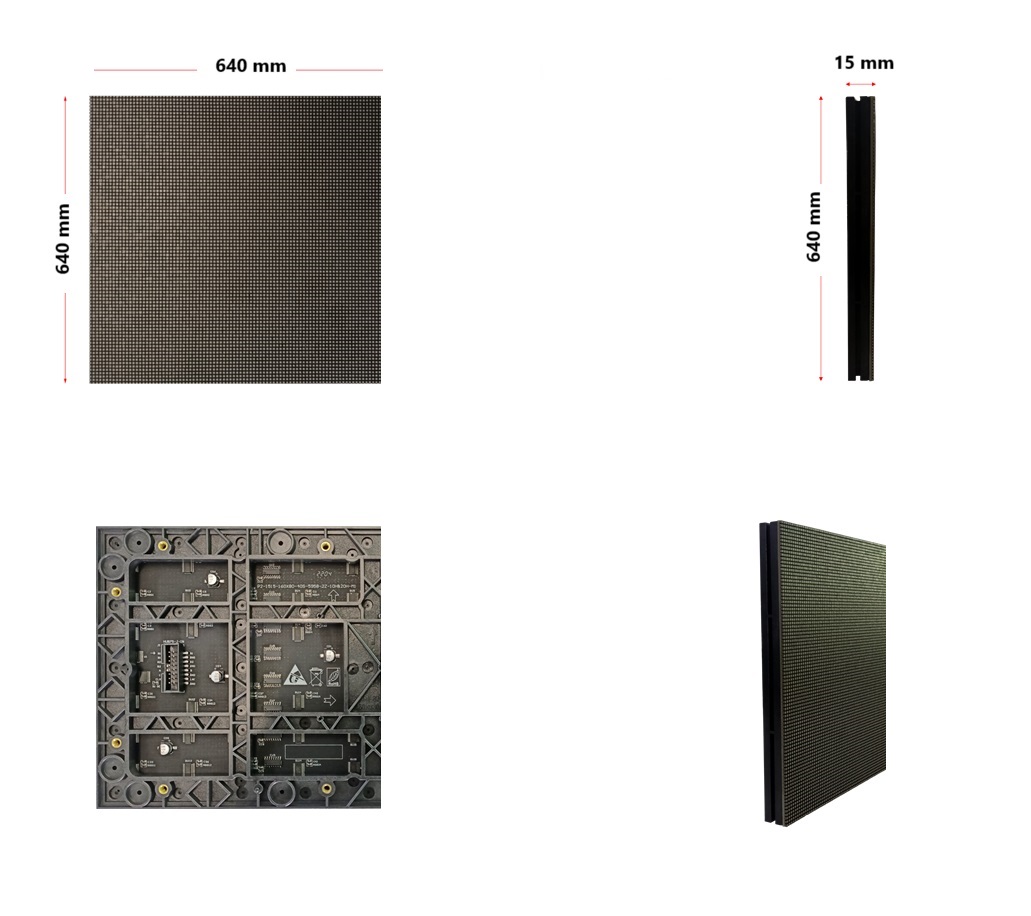

Panel size 640 x 640 mm. Resolution of LED panel 320 x 320 mm.

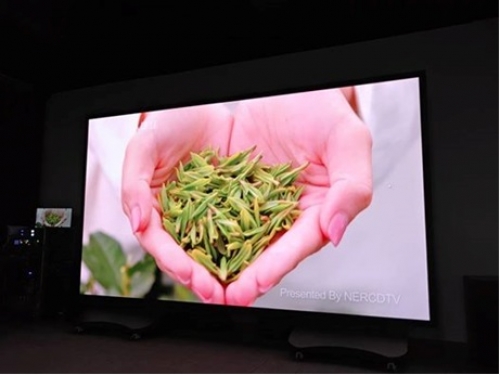

Wide range of uses - television, theaters, car showrooms, exhibitions, productions, concerts, installations, clubs, meeting and training rooms, presentations... Individual panels can be easily and quickly joined together
to create large-scale individual layout screens.

The very long life of the LED system and the very low probability of
failure make this device very suitable for permanent installations.
Easy and quick assembly of a large screen !

Each panel includes a connecting cable (power and data) and assembly elements.

THIS LED PANEL CAN BE DELIVERED IN THESE DIMENSIONS:

640 x 640 mm (panel resolution 320 x 320 px)
640 x 480 mm (panel resolution 320 x 240 px)
960 x 480 mm (panel resolution 480 x 240 px)

Technical specifications

MODULE PARAMETERS:
Module dimension:   320 x 160 mm
Physical pitch:   2 mm
Physical density:   250000 / m2
Pixel configuration:   1R1G1B
Package mode:   SMD 3IN1-1515
Module resolution:   160 points x 80 points (W x H)
Maximum power:   30 W
Module thickness:   15 mm
Drive type:   constant drive
Scan mode:   1/40 scan

DISPLAY PARAMETERS:
Best viewing angle:   H: 140° ; H: 120°
Recommended viewing distance:   ≥2 m
Control IC:   ICN2163
Refresh rate:   3840 Hz
White balance brightness:   700 cd/㎡
Input voltage:   230 V AC ±10%
Recommended operating temperature:   -20℃~+50℃
Average power consumption:   240 W/㎡
Max. power consumption:   600 W / ㎡
Lifespan:   >100,000 hours
Rate:   <0.0001
MBTF:   >5000 hours
