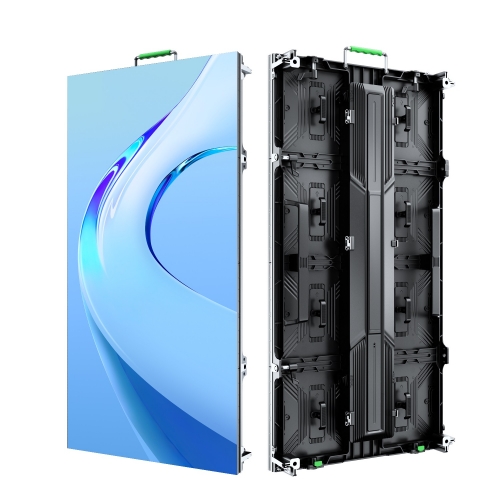

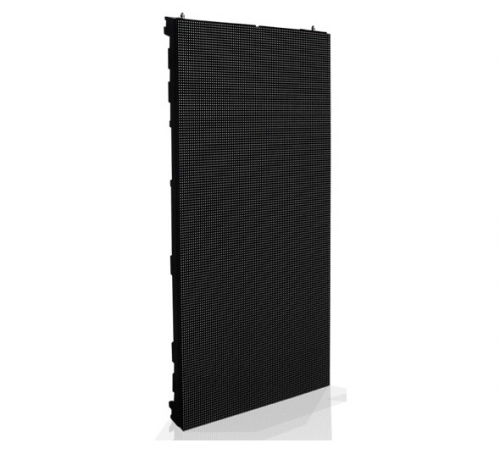

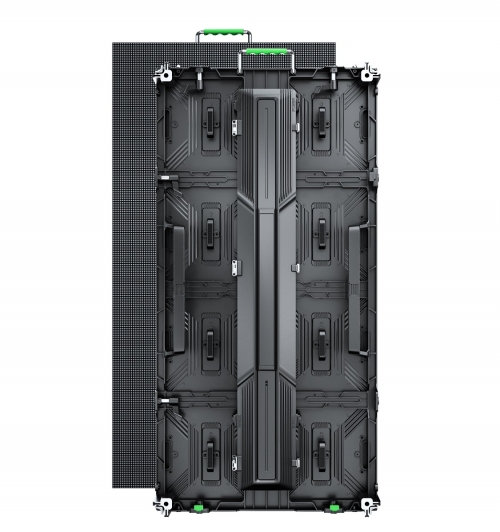

LED screen P3.91, panel 1000x 500 mm, Nova, outdoor
|
|
||||||||||||||
|
22.992,- Kč with VAT |
|||||||||||||||
Item description:
LED panel - 1 x 0,5 m screen with high resolution, designed for outdoor using. Pixel pitch 3.911 mm. Large viewing angle of up to 140 °.
High quality image with high contrast ratio for great black depth and color fidelity. Including receive card NovaStar.
Panel resolution: 256 x 128 px.
Each panel is equipped with 2x 60 A / 5 V power supplies.
Wide range of possibilities - television, theaters, car showrooms, exhibitions, production, concerts, installation, touring, rental, clubs, meeting and training rooms, presentations ... Individual panels can be easily and quickly connected together to create large.
3.91 mm pixel pitch, which is suitable for applications where absolute resolution and image quality are absolutely required. Recommended observation distance is 5 m or more.
Panel is fitted at the corners with four folding corners with a
spring protecting the edges of the panel from mechanical damage !
The very long life of the LED system and the very low probability of failure makes this device very suitable for permanent installation, but with easy and quick assembly (12 kg panel weight) are also very attractive touring and rental systems.
LED module 250x 250 mm specification:
Technical specifications
Screen dimension: 1000 x 500 mm
Modules quantity: 8 pcs
Module dimensions: 250 x 250 mm
Panel resolution: 256 x 128 px
Outdoor use: yes
Pixel pitch: 3,91 mm
Pixel density: 65536 dots / m2
Chip: SMD2727
Viewing angle: 140° (height), 140° (width)
Brightness: ≥ 5000 cd / m2
Driving method: 1/13
Display weight: 12 kg
Average power consumption: 180 W
Max power consumption: 600 W
Power supplies: 2x 5 V / 40 A
Refresh rate: >1000 Hz
Frame rate: 60 frame/s
Gray scale: >65536 gr.
Brightness adjustment: 256 levels
System: NovaStar
Waterproof: IP65 (waterproof, dustproof)
Recommended working temperature: -20 °C - +60 °C
