LED screen P4.81, panel 1000x 500 mm, Nova, outdoor

Code:	LED325
Category:	LED outdoor
Producer:	NovaStar
Weight:	13000 g
Stores inventory:	min. 1 month
Price without VAT:	17.466,- Kč
Price with VAT:	21.135,- Kč

21.135,- Kč with VAT

Item description:

LED panel - 1 x 0,5 m screen with high resolution, designed for outdoor using. Pixel pitch 4,81 mm. Large viewing angle of up to 140 °.
High quality image with high contrast ratio for great black depth and color fidelity. Including receive card NovaStar.

Panel resolution: 208 x 104 px.

Each panel is equipped with 2x 60 A / 5 V power supplies.

Wide range of possibilities - television, theaters, car showrooms, exhibitions, production, concerts, installation, touring, rental, clubs, meeting and training rooms, presentations ... Individual panels can be easily and quickly connected together to create large.

We offer complete 4x 3 m outdoor screen set !

4,81 mm pixel pitch, which is suitable for applications where absolute resolution and image quality are absolutely required. Recommended observation distance is 5 m or more.

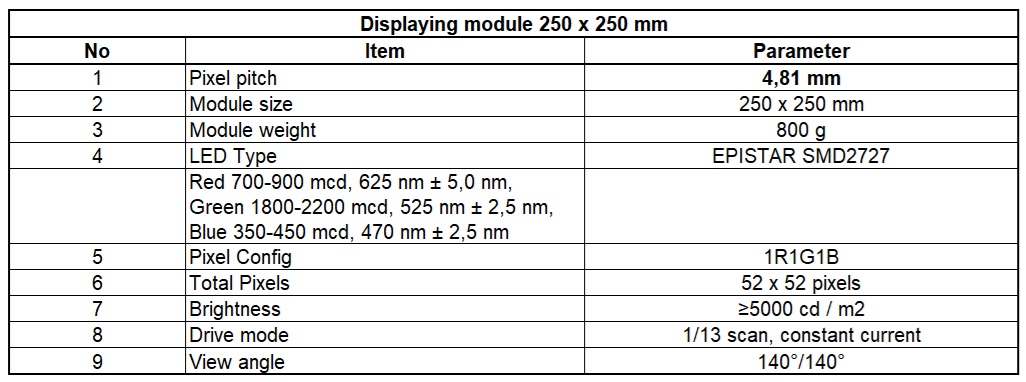

Each screen is equipped with 8 modules - 250x 250 mm:

The very long life of the LED system and the very low probability of failure makes this device very suitable for permanent installation, but with easy and quick assembly (12 kg panel weight) are also very attractive touring and rental systems.

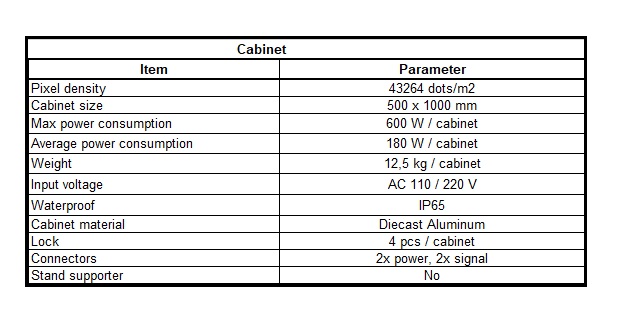

Screen panel parametres:

We also offer the screen with the possibility of angle adjustment in the range of -10 ° to + 10 °

Technical specifications

Screen dimension:   1000 x 500 mm
Modules quantity:   8 pcs
Module dimensions:   250 x 250 mm
Panel resolution:   208 x 104 px
Outdoor use:   yes
Pixel pitch:   4,81 mm
Pixel density:   43624 dots / m2
Chip:   SMD2727
Viewing angle:   140° (height), 140° (width)
Brightness:   ≥ 5000 cd / m2
Driving method:   1/13
Display weight:   12 kg
Average power consumption:   180 W
Max power consumption:   600 W
Refresh rate:   >1000 Hz
Frame rate:   60 frame/s
Gray scale:   >65536 gr.
Brightness adjustment:   256 levels
System:   NovaStar
Waterproof:   IP65 (waterproof, dustproof)
Recommended working temperature:   -20 °C - +60 °C
