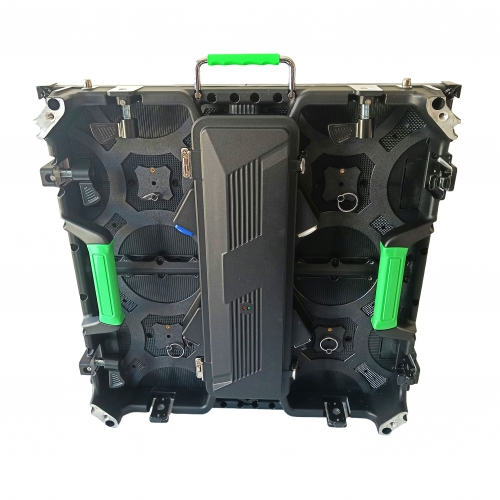

LED screen P2.6, panel 500x 500 mm, Nova, indoor

Code:	LED569
Category:	LED indoor
Producer:	NovaStar
Weight:	8000 g
Stores inventory:	2 at stock
Price without VAT:	6.021,- Kč
Price with VAT:	7.286,- Kč

7.286,- Kč with VAT

Item description:

LED panel - 0,5 x 0,5 m screen with very fine resolution, designed for indoor use. Pixel pitch 2,6 mm. Large viewing angle of up to 140°. High quality image with high contrast ratio for significant black depth and color fidelity. Includes a NovaStar admission card MRV208-1.

Panel resolution: 192 x 192 pixels.

Each panel is equipped with a 40 A / 5 V source.

Wide range of uses - television, theaters, car showrooms, exhibitions, productions, concerts, installations, touring, rental, clubs, meeting and training rooms, presentations... Individual panels can be easily and quickly connected to each other to create large screens with an individual layout .

Each screen is equipped with 4 display modules measuring
250x250 mm:

The very long life of the LED system and the very low probability of failure make this device very suitable for permanent installations, but thanks to the easy and quick assembly (panel weight 7 kg) they are also very attractive systems for touring and rental.

Each panel includes a connecting cable (power and data) and mounting plates including screws.

Panel je na rozích osazen čtyřmi sklápěcími rohy s pružinou
chránící hrany panelu před mechanickým poškozením !

We offer a transport flight for the transport of LED panels 500x 500 mm
case boxes in different variants.

Technical specifications

Screen size:   500 x 500 mm
Number of display modules:   4
Display module size:   250 x 250 mm
Use:   indoor
Panel resolution:   192 x 192 pixels (on screen 500 x 500 mm)
Pixel pitch:   2,6 mm
Chip type:   Kinglight, SMD2121
Viewing angle:   140° (height), 140° (width)
Brightness:   1000 cd / m2
Management method:   1/32
Actual weight of the display:   6,4 kg
Average consumption:   60 W
Maximum consumption:   120 W
Refresh rate:   3840 Hz
Frame rate:   60 - 85 frames/s
Gray scale:   >65536 gr.
Brightness adjustment:   256 levels
System:   NovaStar
Degree of protection:   IP43
Recommended operating temperature:   -20 °C to +60 °C
