Moving head Gobo LED 100 W, DMX

Code:	LED475
Category:	Moving heads
Producer:
Weight:	8000 g
Stores inventory:	min. 1 month
Price without VAT:	5.583,- Kč
Price with VAT:	6.755,- Kč

6.755,- Kč with VAT

Item description:

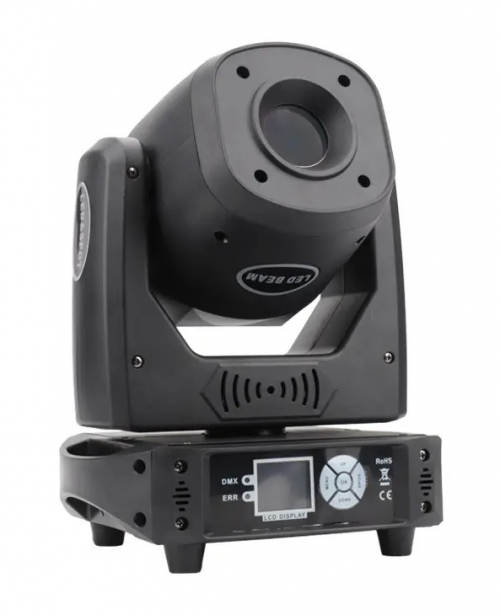

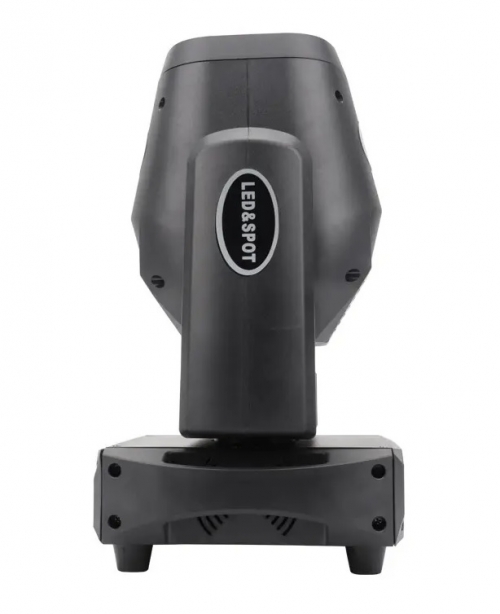

Powerful moving Gobo head equipped with a 100 W LED diode.

1x colour wheel: 13 + 1 (white), semi-color effect.
1x round with fixed gobo (10 + 1).
1x wheel with rotating gobo 7 + 1, 3 glass gobos.
1x bidirectional 5-sided rotating prism.

Gobos can move and flow in both directions.

The head moves in a horizontal rotation of 540° and in a vertical rotation
of 245° (8/16 bit resolution).

Wide viewing angle, mechanical dimension, strobe 0.5-14x / sec.
Automatic mode, built-in microphone for responding head to music, Master / Slave connection. DMX512 control (11/16 channels). Setting values via LCD display.
Supplied with bracket for hanging on the structure or truss. PowerCon cable included.

We also offer flight case transport box with wheels for 2 heads.

Technical specifications

Light source:   1x LED 100 W
Power:   130 W
Power supply:   230 V AC, 50/60 Hz, electronic ballast, PowerCon cable
Control:   LCD display
Horizontal rotation:   540° (8/16 bit resolution)
Vertical rotation:   245° (8/16 bit resolution)
Modes:   Automatic, Music, Master/Slave, DMX512
DMX512 channels:   11/16

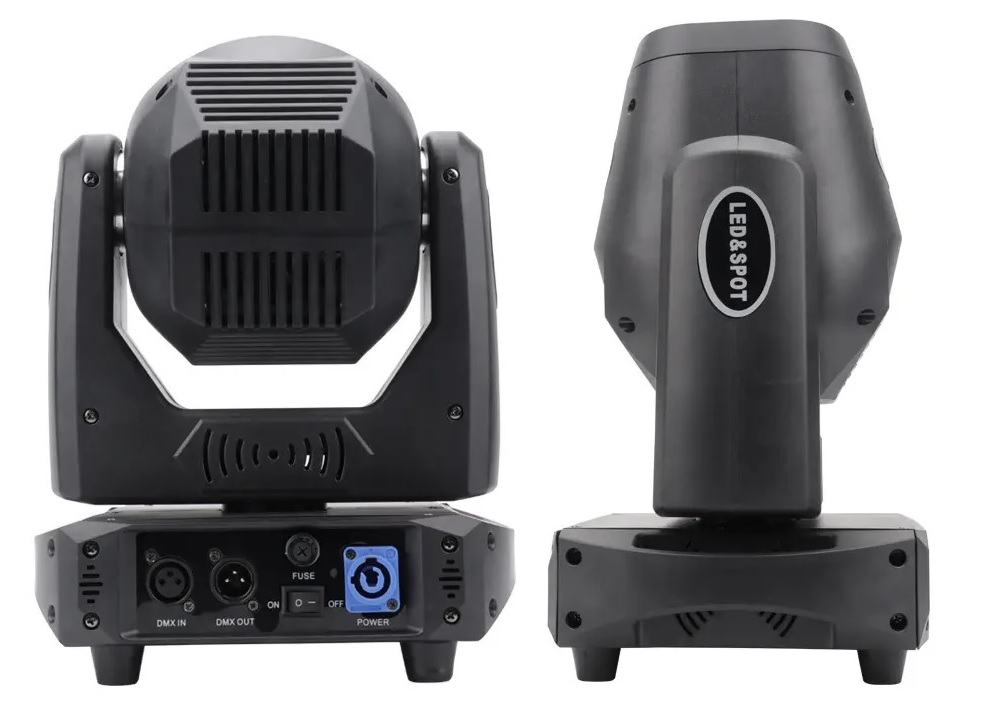

DMX connection:   3-pin XLR IN / OUT
Cooling:   active, air cooling fan
Dimensions: 260 x 200 x 350 mm (L x D x H)

This product can be directly controlled by music via the USB connection!

DMX Pipe & Music Vizualization

Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.

For more information click here.
