Moving head Beam 380W Philips, Gobo, prism, DMX

Code:	LIGHT265
Category:	Moving heads
Producer:
Weight:	19000 g
Stores inventory:	5 at stock
Price without VAT:	10.620,- Kč
Price with VAT:	12.850,- Kč

12.850,- Kč with VAT

Item description:

The most powerful and very quick moving Beam head in our offer !
Quality workmanship, suitable for large spaces.

Equipped with a quality lamp 380 W Phlips.

Separate multi-color color atomizer (for color prisms).
Two independent rotating prisms can be combined into
a third rotating prism (8+16+24).

Beam angle 1.8° - 38° (electronic focus)

Color wheel with 14 color wheels + white
Fixed gobo with 17 effects

DMX512 (16 channels), Auto, Sound Active, Master-Slave connection
(3-pin XLR)

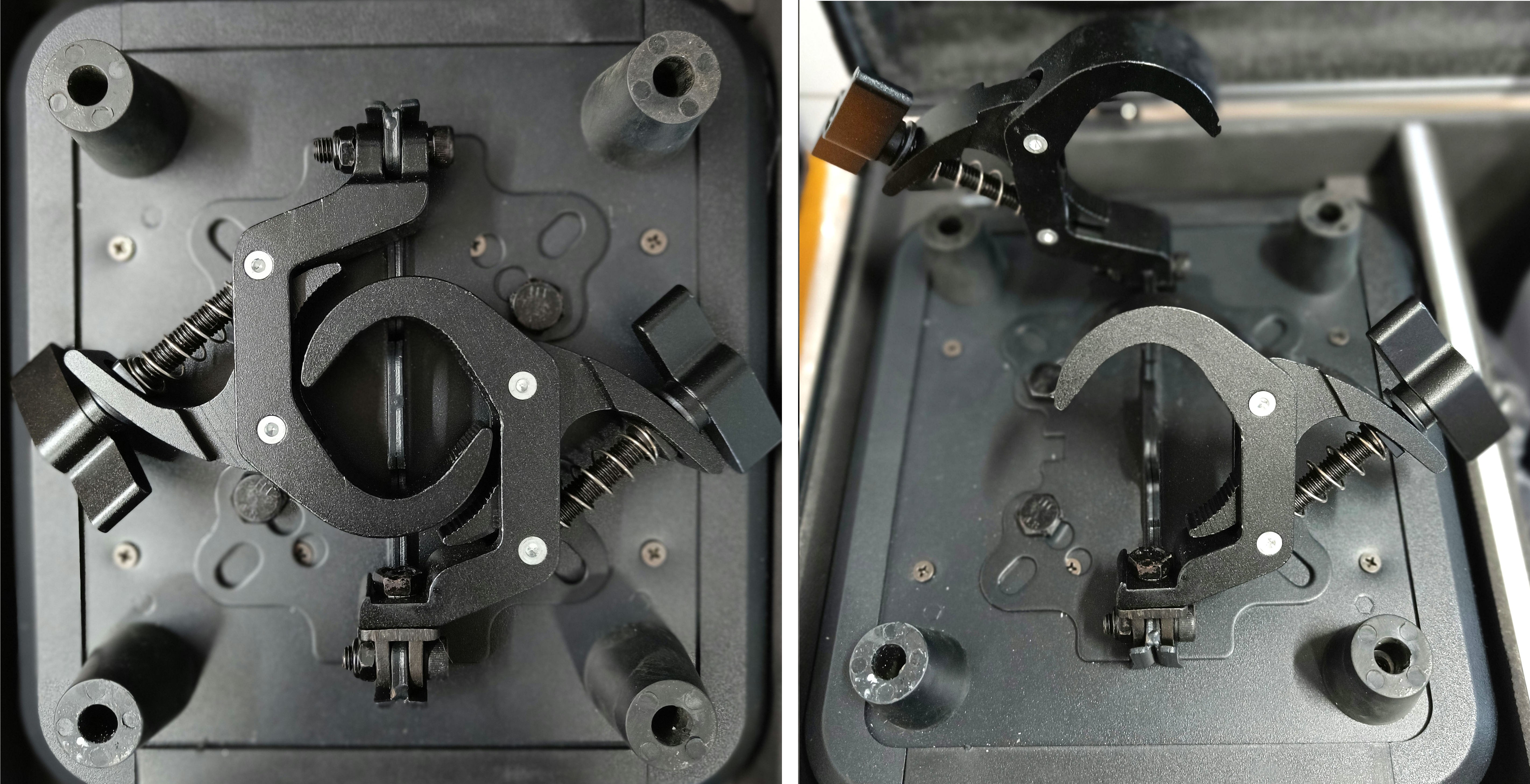

Menu can be controlled via the display with 4 buttons, or by touching directly on the display. Side handles for carrying. Supplied with clamps for attaching the head to a structure or truss.

We offer profi flight case 2in1 for the easy transport of this 2 moving heads.

For this moving head we offer a replacement lamp 380 W including ballast.

MANUAL

Technical specifications

Power:   600 W
Light source:   Phlips 380 W (original!)
Lamp life:   8000 hours
DMX channels:   16 CH
Modes:   DMX512, Auto, Sound Active, Master-Slave connection
DMX connection:   3-pin XLR IN/OUT
Beam angle:   1,8° - 38° (electronic focus)
Atomization:   gradually atomized, color angle 15-60°
Colors:   13 color wheel + white light + color
White color temperature:   8000 K
Luminosity:   240 000 lm
Gobo:   13 fixed images + 4 wave images
Prism:   8 prisms + 3 rotating prisms (8-16-24)
Optical lens:   color coated lens
Dimmer:   0-100 %
Beam angle:   1,8° Beam angle 155
Horizontal rotation:   540° (8/16-bit resolution)
Vertical rotation:   270° (8/16-bit resolution)
Maximum X-axis speed:   2,45 seconds
Maximum Y-axis speed:   1,3 seconds
Protection degree:   IP20
Control:   touch screen or 4-button display, 180° rotation possible
Power supply:   230 V / 50-60 Hz, including PowerCon power cable, serial power supply possible Power In/Out
Dimensions:   570 x 400 x 270 mm (H x D x D)
Weight:   19 100 g

This product can be directly controlled by music via the USB connection!

DMX Pipe & Music Vizualization

Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.

For more information click here.
