LED moving head 300 W 3in1 Beam+Wash+Spot, RGB ribbon, DMX

Code:	LED686
Category:	Moving heads
Producer:
Weight:	14000 g
Stores inventory:	10 at stock
Price without VAT:	8.464,- Kč
Price with VAT:	10.242,- Kč

10.242,- Kč with VAT

Item description:

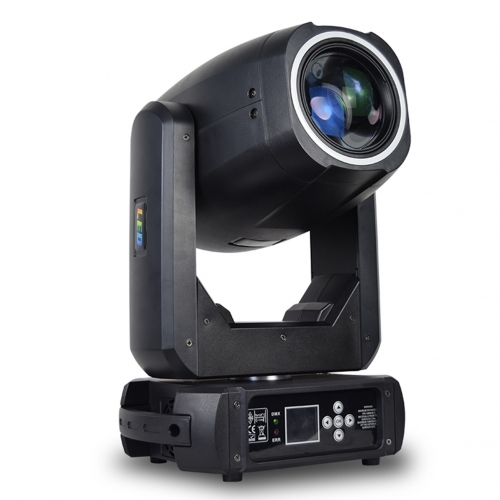

NEW 2025 - powerful moving LED head 300 W, BSW version
3in1 - Beam + Wash + Spot. Ribbon pixel ring with RGB
LEDs to enhance the effect. Viewing angle 3.4° to 25°.

1x fixed color palette, 9 colors + white, rainbow effect speed control,
half-step color effect.

1x rotating gobo plate, 7 interchangeable gobo plates + white light,
bidirectional gobo rotation and gobo effects speed control.

1x fixed gobo plate, 11 patterns + white light,
bidirectional rotation with speed control.

1x prism with adjustable rotation and speed.

Linear focus, 0-100% linear dimming. Strobe flash speed
0,5-14 x / sec. Horizontal rotation 540°, vertical rotation 270°,
automatic calibration and fine-tuning of position.

Auto mode, Sound Active, Master/Slave connection (3-pin XLR IN/OUT), DMX512 (18 channel mode).

Setting values and modes on the LCD display on the front panel,
possibility of rotating the description and adjusting the brightness of the display. The head is equipped with through PowerCon IN/OUT connectors for connecting multiple lights in series. Head can be hung on a structure or truss using two consoles with quick lock locks.

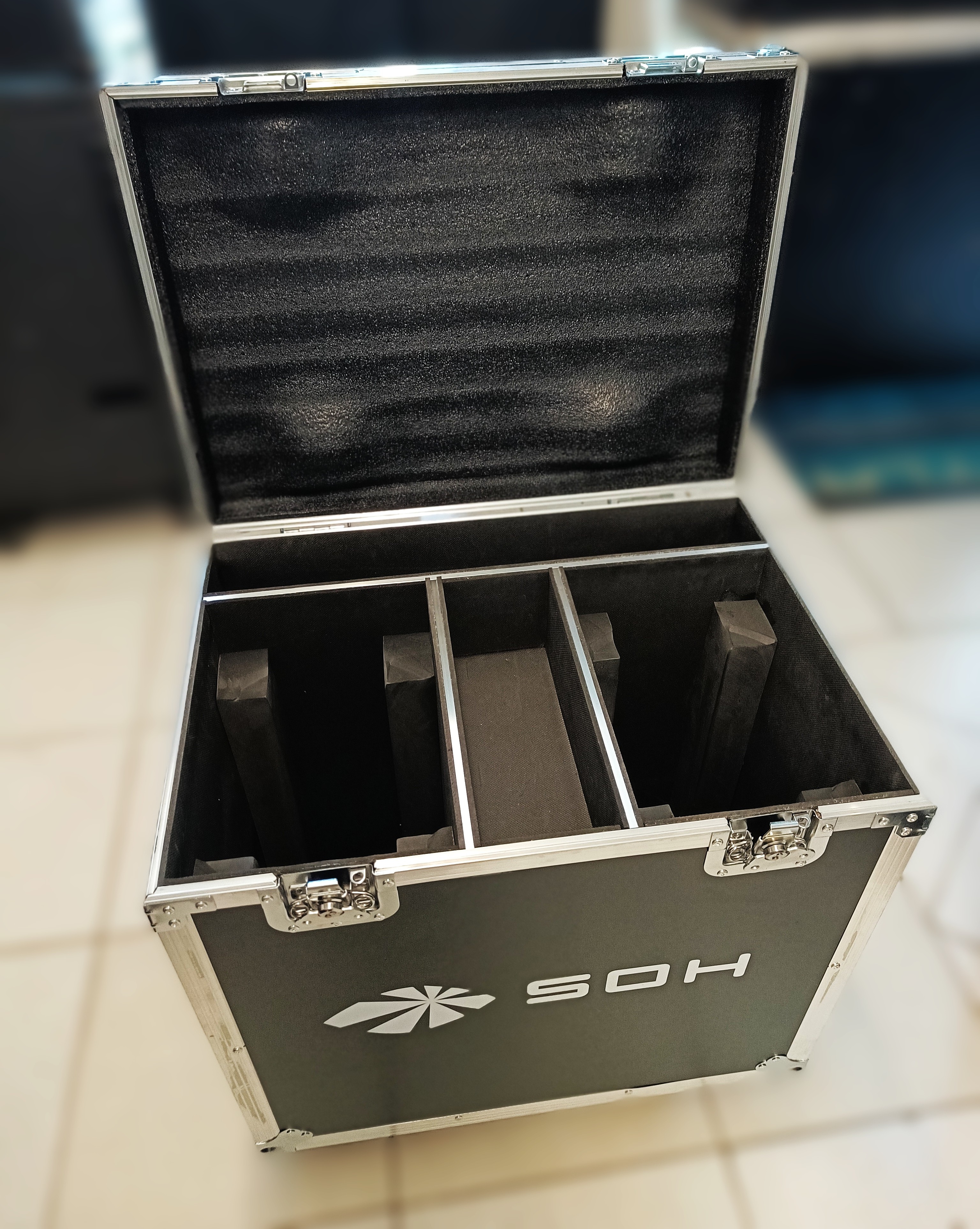

We offer flight case box for transport of these two moving heads.

MANUAL

Technical specifications

Light source:   200W white LED
White temperature:   7000 K
Focus:   linear focus
Dimming:   linear 0-100%
Colors:   1x fixed color palette, 9 colors + white, rainbow effect speed adjustable, half-step color effect
Rotating gobo:   1x rotating gobo plate, 7 interchangeable gobo plates + white light, bidirectional gobo rotation and gobo effect speed control
Fixed gobo:   1x fixed gobo plate, 11 patterns + white light, bidirectional rotation with speed control
Prism:   1x prism with adjustable rotation and speed
Flash rate:   0,5-14 x / sec
Beam viewing angle:   3,4° to 25°
Disc rotation angle:   4° -30°
Atomized light angle:   8°
Horizontal rotation:   540°, scan speed 3,0 sec
Vertical rotation:   270°, scan speed 2,0 sec
Operating modes:   Auto, Sound Active, Master/Slave, DMX512
DMX channels:   18 channel mode
Control:   LCD display with buttons
Protection degree:   IP20
LED lifespan:   more than 50,000 hours
Power supply:   230 V AC, 50/60 Hz
Dimensions:   310 x 215 x 540 mm (L x W x H)
Weight:   12 500 g

This product can be directly controlled by music via the USB connection!

DMX Pipe & Music Vizualization

Hardware and software, which allows controlling of light show only thru playing music. Usable for any kind of light technics equipped with DMX512.

For more information click here.
