Single-color 12-24 V LED stripes remote control RF RT1, 2,4 GHz

Code:	LED674
Category:	Controllers
Producer:
Weight:	150 g
Stores inventory:	at stock
Price without VAT:	359,- Kč
Price with VAT:	435,- Kč

435,- Kč with VAT

Item description:

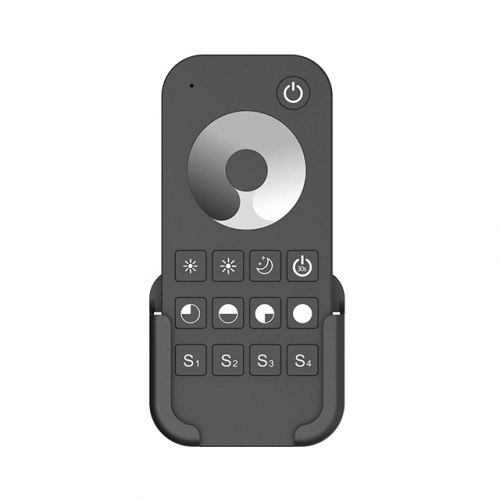

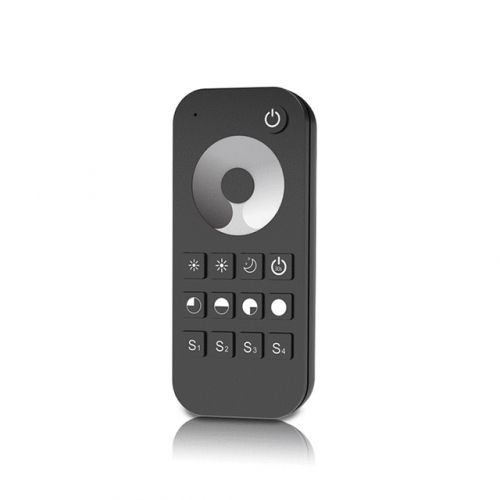

Remote control for controlling single-color LED stripes 12-24 V.

The controller can be used either independently or in combination
with a smart dimmer WT5 for controlling LED stripes.

14 buttons - main switch, brightness control, night mode, timer,
brightness levels 25°-50°-75°-100°, four buttons S1 to S4 for
calling up saved scenes.

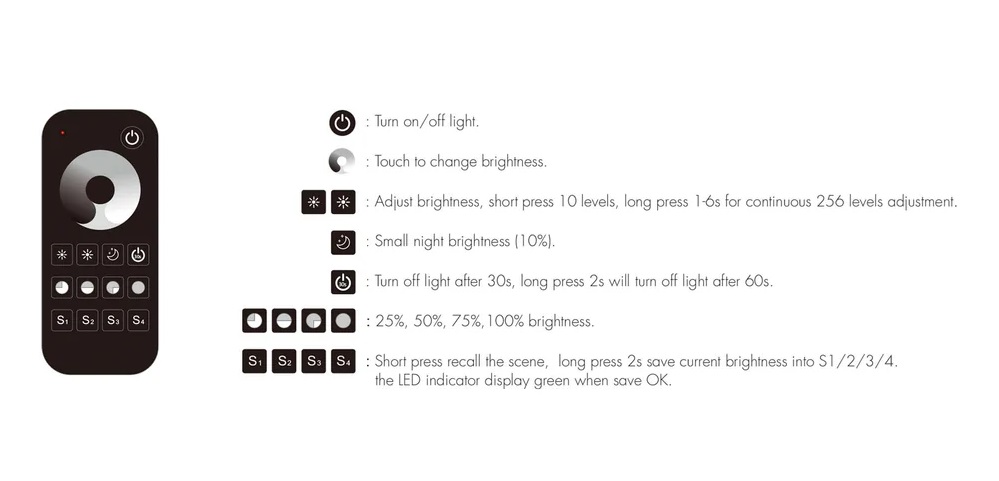

Button description:

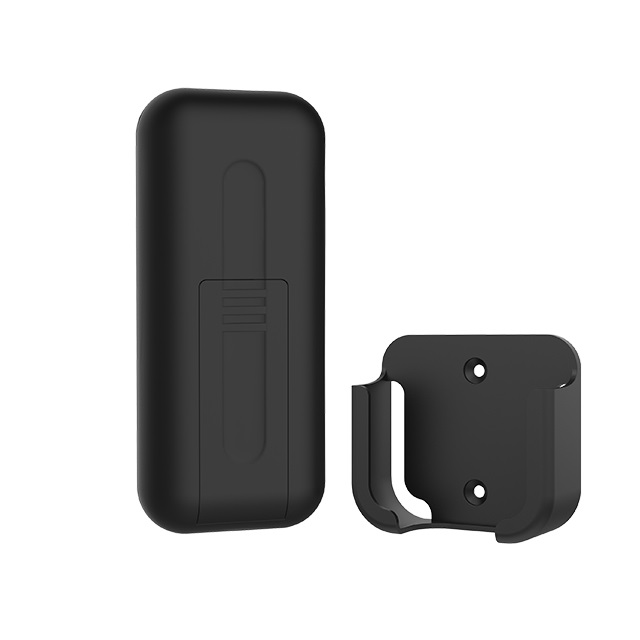

Easy pairing, range up to 30 m. Operating frequency 2,4 GHz. Controller powered by 2x AAA batteries (included). Supplied with a practical wall mount for the controller. The user always has the controller at hand. Radio RF transmission does not require direct visibility of the controller and
the LED stripe ! LED indicate diode.

MANUAL

Technical specification

Controller model:   RT1
Supported LED stripes:   single-color (12-24 V)
Output signal:   RF (2.4 GHz)
Working voltage:   3 V DC (2x AAA batteries)
Working current:   <5 mA
Standby current:   <10 μA
Controller range:   30 m
Number of controlled zones:   1
IP protection:   IP20 (non-waterproof)
Working temperature:   -30 ° C to + 55 ° C
Number of buttons:   14
LED indicator:   yes

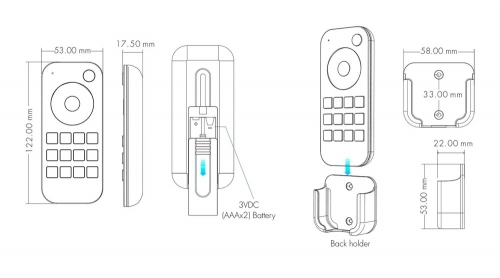

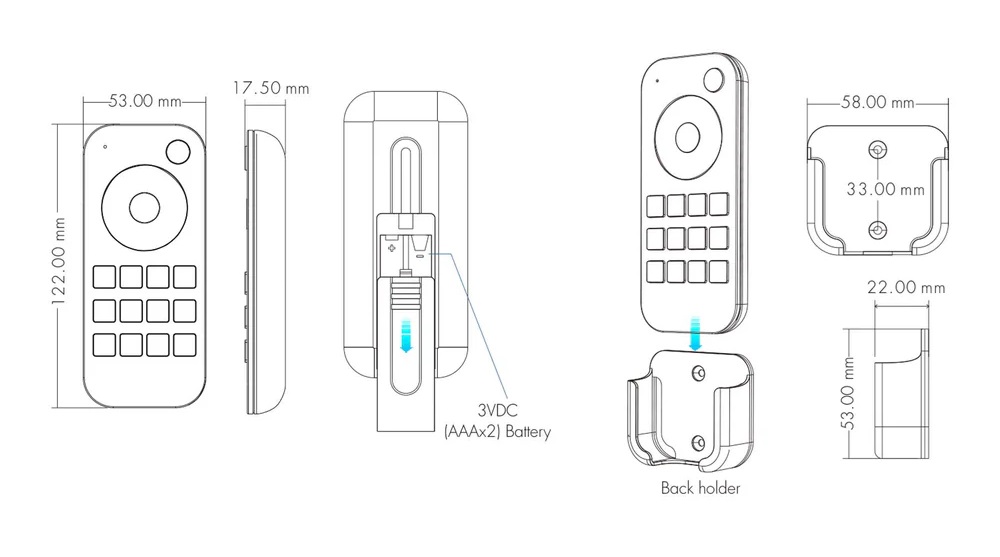

Dimensions:   122 x 53 x 17.5 mm (L x W x H)
Weight:   46 g
Power supply:   2x AAA batteries (included)
