NovaStar TB40 LED screen control processor

Code:	LED725
Category:	LED control
Producer:	NovaStar
Weight:	2000 g
Stores inventory:	at stock
Price without VAT:	5.768,- Kč
Price with VAT:	6.980,- Kč

6.980,- Kč with VAT

Item description:

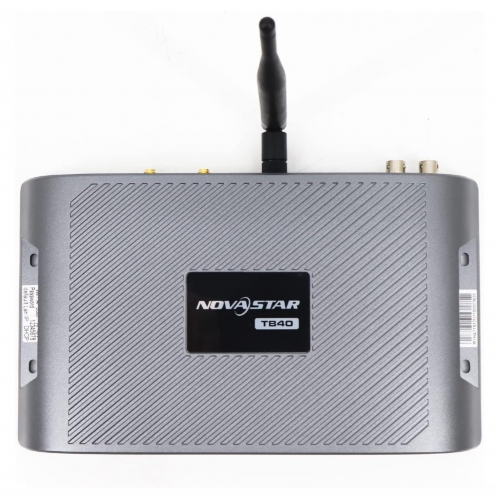

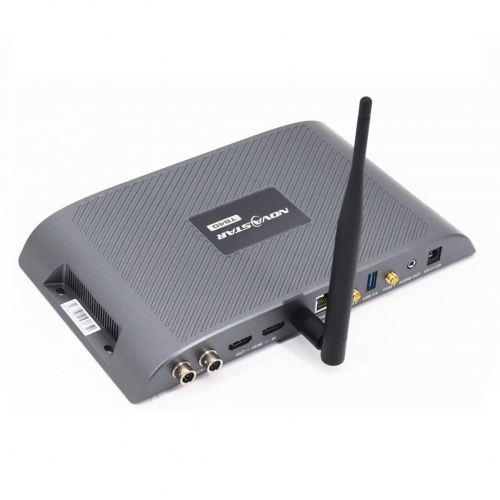

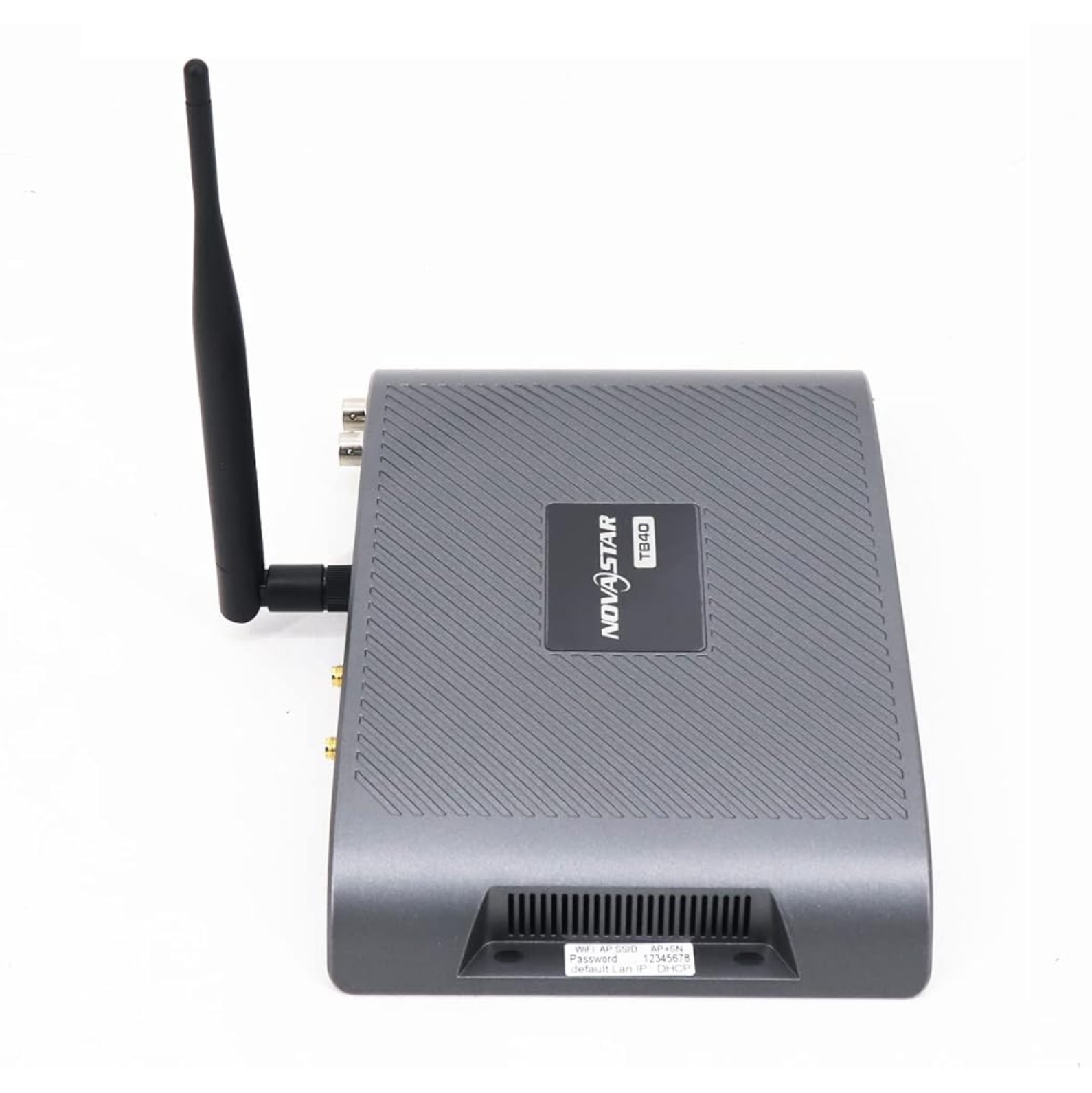

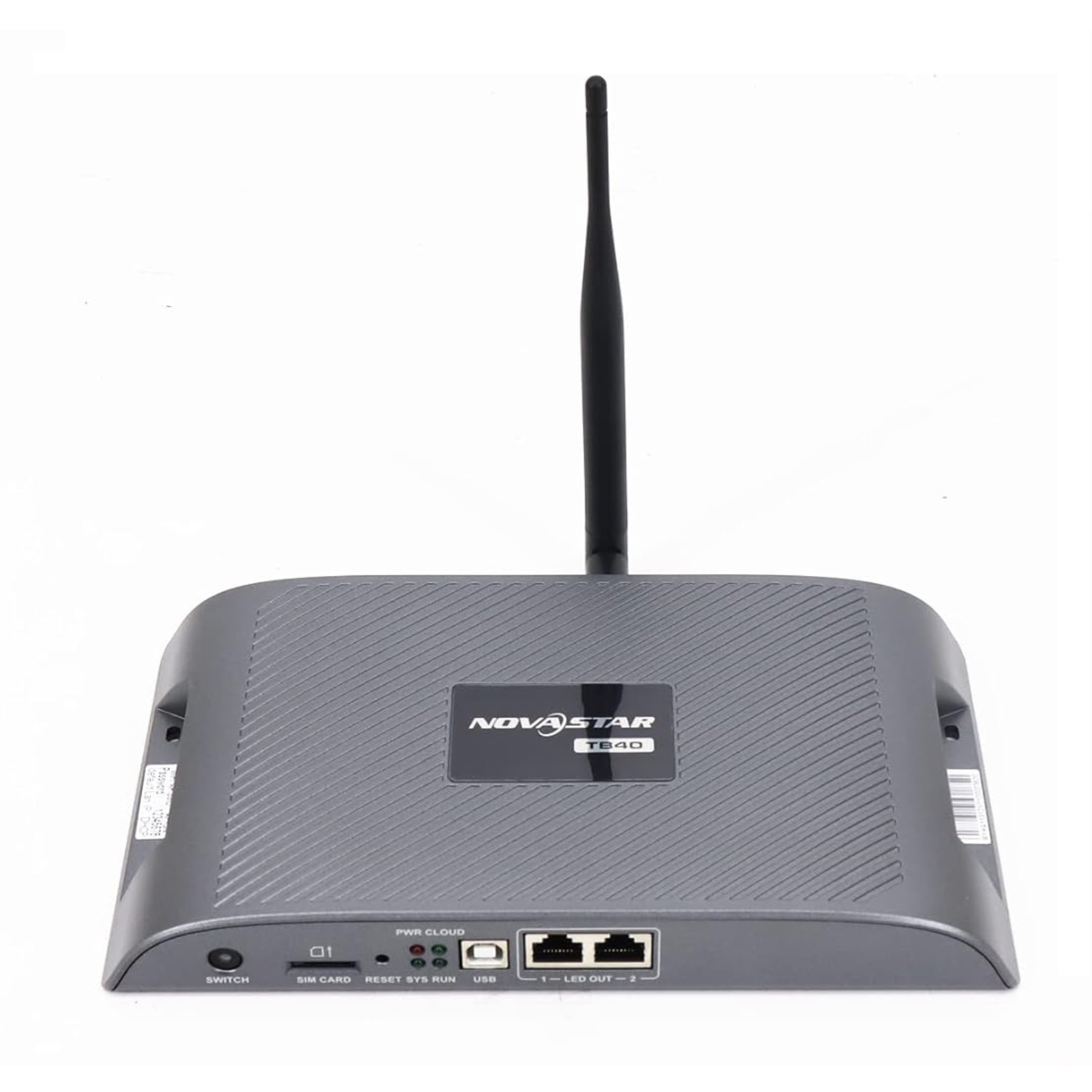

NEW 2025 - Novastar TB-40 large-screen LED display controller is the
third-generation multimedia player developed by Novastar for
full-color LED displays.

Controller integrates playback and sending functions, allowing users to
publish content and control the LED display from a computer, phone or tablet.
By cooperating with cloud publishing and monitoring platforms, TB40 allows users to manage LED displays from an Internet-connected device anywhere, anytime.

Support for synchronous playback on multiple screens and synchronous and asynchronous modes makes this multimedia player ideal for a wide range of applications.
Supports simultaneous playback on multiple screens. Powerful computing power. Comprehensive control procedures. Supports synchronous and asynchronous dual modes.
Supports WiFi AP connection to Novastar TB40 LED multimedia video player. Supports 1.3 megapixel resolution with a maximum capacity of 4096 and a maximum capacity of 1920.
Supports stereo audio output, HDMI loop through, HDMI input and output mode, and adaptive full-screen playback. Supports gigabit wired networks. USB connector. U disk program playback.

TB40 supports automatic and scheduled switching in synchronous/asynchronous mode. Supports USB disk program playback. It has a brightness sensor interface, which supports automatic and timed intelligent brightness adjustment in dual mode.
The controller can be used in various environments and occasions, such as monitoring room, large-screen LED screen use in conferences, exhibitions, and expositions.

MANUAL

Technical specifications

Input power: 230 V AC, power adapter 12 V / 1,5 A / 18 W
Maximum power consumption: 18 W
Operating memory: 2 GB
Memory: 32 GB integrated with 28 GB free for users
Recommended storage temperature: –40 to +80°C, 0 to 80% relative humidity, non-condensing
Recommended operating temperature: –20 to +60°C, 0 to 80% relative humidity,non-condensing
Supported resolution: 1,3 megapixels with a maximum capacity of 4096
and a maximum capacity of 1920
Support Wi-Fi AP connection: yes
Support stereo audio output: yes
HDMI loopback: yes, HDMI input and output connectors
Synchronous/asynchronous switching: automatic and scheduled
USB slot: yes
Dimensions: 239 x 140 x 33 mm
Weight: 458 g
Package contents: TB40 controller, receiving antenna,
power adapter 12 V / 1.5 A (18 W), user´s manual
